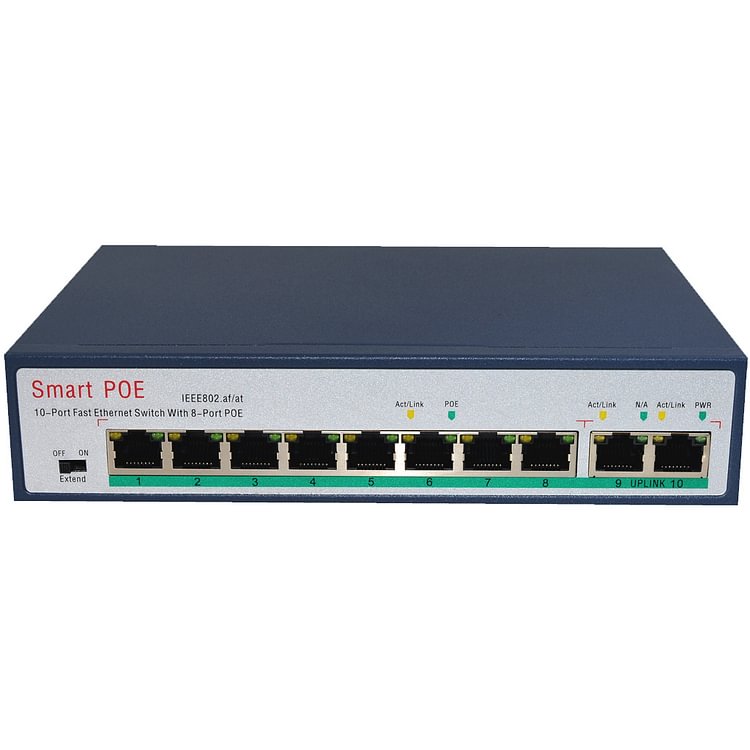

WEISKY 10 Port PoE Switch, 8 PoE+ Port 100Mbps, 2 100Mbps Uplink, 120W 802.3af/at, Extend Function, Metal, Fanless, Plug and Play
EXW, FOB, CFR, CIF, DDP
Worldwide Shipping By Sea, By Air. By Express
Green Factory CE FCC LVD EMC Rohs ISO2000
Secure payments, Paypal, TT, WU, Alipay
Model
Please select a model
Price
$65.00
$50.00
Save  $15.00
Quantity
Vendor by: WEISKY

About this item

  • 【Port and rate】This PoE network switch includes 8 POE ports (10/100Mbps) and 2 100Mbps UpLink ethernet(100Mbps).
  • 【120W Power Supply】 Support IEEE 802.3af/at. Max 120W, built-in power, each port up to 30W and 15.4W at the same time. Please note: If your device support 24V passive PoE, not support IEEE802.3at/at 48v PoE, it will not be compatible
  • 【Plug and Play】 Support automatically detect devices, just plug in the power cord and network cable, no configuration required, easy to use. It is an unmanaged ethernet network switch
  • 【250m and VLAN support】 When the extend mode is enabled, a single POE port supports 250m transmission distances and 10Mbps speed. 1-8 ports support VLAN isolation, reduce network congestion, improve network safety.
  • 【Wide Applications】 Compact design. Durable Metal. Bilateral heat dissipation. PoE Camera, LED lights. Widely used in IP cameras, Wireless Access Point, IP Phone, Computer Networks, etc.
  •   If you have any questions, please contact our official support, we will provide the best after-sales service

Auto Detects Power Devices

Compatible with IEEE802.3af/at protocol, the PoE switch determines and delivers the exact power supply to your devices with up to 120W power output.

Easy to Use

Unmanaged, Play & Play PoE switch. You just need to connect the power cable and the Poe devices.

Unique LED Indicator Design

You can quickly check the working status and troubleshoot ports with Power/PoE/Extend indicator.

Port Isolation

When you enable the extend mode, the PoE port is isolated with each other, this is used if you would like to run multiple devices/ networks on the same physical infrastructure or equipment but want to keep them separate, this improves network security, efficiency and management.

Link Extention to 250m

PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When extend mode enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.

Fanless & Silent Operation

The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

Support Wall Mount

You can mount the switch on the wall or desktop, the perfect solution for a variety of environments.

Compact Size

The compact design makes these sensors interesting for room-critical applications.

Operate Over Wide Temperature Ranges

Unique design make sure PoE switch long-term stable operation over temperature spans of -10 and +55°C.

Auto Detects Power Devices

Compatible with IEEE802.3af/at protocol, the PoE switch determines and delivers the exact power supply to your devices with up to 120W power output.

Easy to Use

Unmanaged, Play & Play PoE switch. You just need to connect the power cable and the Poe devices.

Unique LED Indicator Design

You can quickly check the working status and troubleshoot ports with Power/PoE/Extend indicator.

Port Isolation

When you enable the extend mode, the PoE port is isolated with each other, this is used if you would like to run multiple devices/ networks on the same physical infrastructure or equipment but want to keep them separate, this improves network security, efficiency and management.

Link Extention to 250m

PoE (Power Over Ethernet) usually has a maximum run of around 100 meters. When the extending mode is enabled, it will allow you to increase your run to a distance of 250 meters. the maximum speed will downgrade to 10Mbps.

Fanless & Silent Operation

The PoE switch features with metal case and fanless design that ensures noiseless operation and greater reliability over time.

Support Wall Mount

You can mount the switch on the wall or desktop, the perfect solution for a variety of environments.

Compact Size

The compact design makes these sensors interesting for room-critical applications.

Operate Over Wide Temperature Ranges

Unique design makes sure PoE switch long-term stable operation over temperature spans of -10 and +55°C.

Most businesses these days have some sort of structured cabling solution. This uses standard twisted-pair cabling to connect all of the networking devices in the building, so that computers and phones can share the same cables, making it easy to move things around to suit changing requirements.

Using PoE Switches can help companies improve, grow and maintain their networks.

What Is PoE?

One of the other advantages of structured cabling is that it can be used to transmit electric power using Power-over-Ethernet (PoE) technology. PoE is useful for devices such as wireless network repeaters or IP security cameras as they are often mounted high on walls or on ceilings far away from the nearest power socket. Using PoE means that they can use a single Ethernet cable for voice, data and power.

Of course, using PoE simplifies the installation of devices, together with reducing the associated costs. There is no need to run extra cables or install additional power sockets. PoE uses lower than mains voltage, so it’s safe to use, although it can still damage equipment not designed to use it, so installation needs to be carried out carefully.

What Is A PoE Switch?

A switch is a device that allows devices on a network to communicate. A PoE switch has the Power over Ethernet functionality built into it. This means you can power devices using network cables.

A PoE switch provides power that can be used to run other devices via the Ethernet cabling. If your network has distributed switches, it’s also possible to get PoE pass-through switches. These are themselves powered by PoE from a central source but can also pass power on to endpoint devices such as cameras or phones.

What Devices Use A PoE Switch?

There are many devices that can be powered by PoE. However, the amount of power needed can differ.

Low Watt PoE devices

  • VOIP and Video Phones
  • IP cameras
  • Wireless Access Points
  • Audio Devices
  • Remote Computer Terminals and Thin Clients

High Watt PoE devices

  • TVs
  • Computer Monitors
  • Laptops

When Should You Use PoE Switches?

If you have just one or two PoE devices, they can be powered using injectors. These are small devices that plug into a power source and sit between the Ethernet switch and the device to be powered. They provide power to the IEEE 802.3af standard.

Where there are lots of PoE devices, if you use VoIP phones, for example, using individual injectors becomes cumbersome and complicated. Most normal switches don’t support PoE, so you can’t use injectors to provide power before the switch.

However, there is a solution.

Most PoE switches offer a mix of both powered and non-powered ports so that they can be used in your general network.

More sophisticated models such as those offered by weisky offer auto-sensing. This detects when a PoE device is present on a port and provides power to it, but turns it off for non-PoE devices. This ensures that you can safely connect any device to any port without the risk of causing damage to your equipment.

Do PoE Switches Have Any Limitations?

Most PoE switches have limited power, so you can only power smaller devices. Powering larger objects requires more powerful switches, which can be very expensive.

The electric power needed to run these PoE devices is often more expensive than running them through a wall. This means PoE switches should only be used when running two cables is a problem.

One final consideration is if the switch is powering multiple devices and stops running for any reason, all devices connected to it will lose power.

What Are The Benefits Of PoE Switches?

PoE switches have some great benefits. As they cover both network and power, you will only need one cable for each device, rather than two. This helps when you have limited space to run cables, or your office already has too many cables to organise neatly.

PoE is also great for expanding a network where power is an issue. For example, if you want to create a bank of computers in a part of the room with limited power sockets.

PoE switches are also easier to maintain and review. They can be monitored remotely and even completely shut down during downtime.

As they do not need wiring, you do not need to hire an electrician to install them. With a little bit of research, you can be up and running in no time at all.
